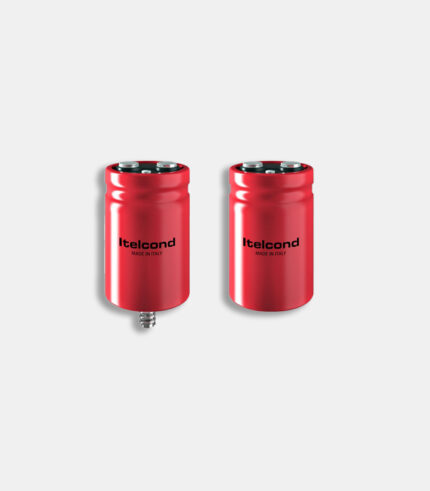

General characteristics
- Sectional
Specification IEC 60384-4 - Climatic
category IEC 60068-1: 40/85/56 - Voltage
proof external insulation ≥2500VAC - Vibration
resistance IEC 60068-2-6, test Fc - Case:
35×83 – 90×240 - Temperature: 85°C
- All
welded construction - Materials
and chemicals are compliant with the latest EU regulations such as RoHS,
REACH/SVHC - Conflict
Materials declaration is available upon request - MDS
for capacitors are available upon request
Self inductance
- 20nH
Expected lifetime
- 10000
hrs (85°C)
Leakage current
- 5 min,
25°C
Materials proprieties
- Case:
aluminium made - Terminals:
screw - Cover:
phenolic resin deck - Sealing:
hermetic by EPR gasket - Pressure
Release Vent: silicone-rubber - Sleeve:
self-extinguishing thermo-shrinkable - External
materials: UL94-V0
